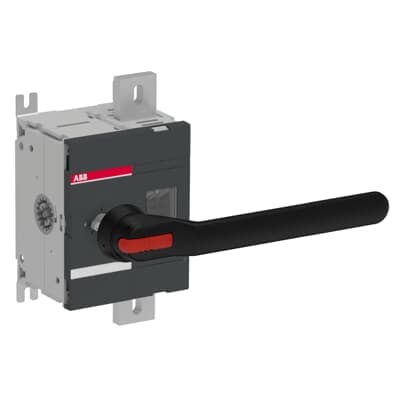

Product Model
OT1600E01P
Selling Points
- 1The OT1600E01P switch-disconnector boasts a compact footprint, ideal for space-constrained installations.
- 2Designed for measurable savings, this switch-disconnector ensures efficiency across its entire lifecycle.
- 3Built to withstand demanding industrial conditions, it offers reliable performance and high mechanical endurance.
- 4Modular design with adjustable shaft reduces installation time by up to 50%, thanks to the wide selection of accessories.
- 5Visible contacts for 100A and above enhance safety, while the door interlock feature prevents unauthorized access when the external handle is padlocked in the OFF-position.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
Pollution Degree | 3 | Product Net Width | 174.5 mm |
Product Net Height | 372 mm | Product Net Depth / Length | 167 mm |
Product Net Weight | 8.1 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
Degree of Protection | Front IP00 | Handle Color | Black |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 6000 | Number of Poles | 1P |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 48 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA123138R1001 |
Specifications may be subject to change without notice
