ABBIsolating switch
Product Model

OT1600E04C

Manufacturer

ABB

Category

Isolating switch

Product ID

84487

In Stock
Last updated: 2025/4/23
View Specifications

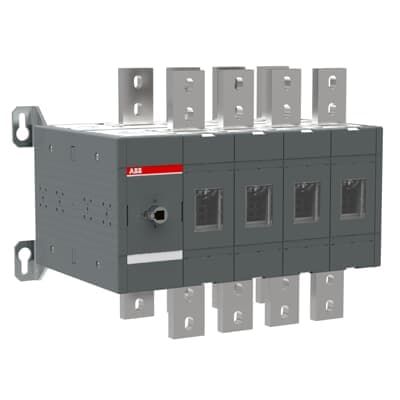

ABB OT1600E04C

Selling Points

  • 1Handles up to 1600 A in both conventional free-air and fully enclosed conditions.
  • 2Base-mounted with a terminal bolt kit included, ensuring secure and reliable operation.
  • 3Meets IEC 60947-3 standards for switch disconnectors, ensuring safety and performance.
  • 4Easy to use with a front-operated mechanism, reducing operational complexity.
  • 5Designed for long-lasting performance with a mechanical durability rating of 6000 cycles.
Product Details
OT1600E04C
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
480 mm 18.9 in
Product Net Height
372 mm 14.65 in
Product Net Depth / Length
309 mm 12.17 in
Product Net Weight
46.96 kg 103.53 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1600 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA022872R1920

Specifications may be subject to change without notice
