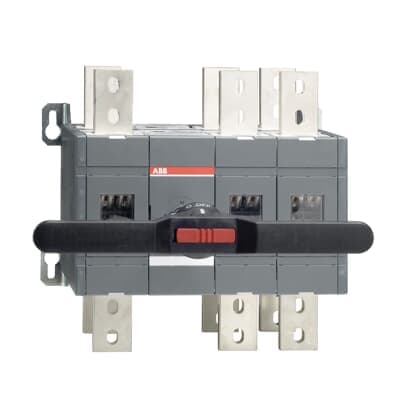

Product Model
OT1600E12CP
Selling Points
- 1High thermal current up to 1600 A at 40°C.
- 2Front IP00 protection for reliable operation.
- 3Robust mechanical durability with a base mounting design.
- 4Easy installation with a black plastic IP65 handle and shaft.
- 5Padlockable handle in the OFF-position for enhanced security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
Pollution Degree | 3 | Product Net Width | 400 mm 15.75 in |
Product Net Height | 372 mm 14.65 in | Product Net Depth / Length | 309 mm 12.17 in |
Product Net Weight | 38.22 kg 84.26 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1600 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Handle Color | Black | Handle Type | Handle and shaft included |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 48 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A |
Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1600 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
Switches Operating Mechanism | Mechanism Between the Poles 12 (Between the Poles) | Terminal Type | Screw Terminals |
Terminal Width | 50 mm | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
Transition Type | Open | Ampere Rating | 1600 A |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3600165 | Manufacturer ID | 1SCA103293R1001 |
Specifications may be subject to change without notice
