ABBIsolating switch
Product Model

OT1600E22

Manufacturer

ABB

Category

Isolating switch

Product ID

85963

In Stock
Last updated: 2025/4/19
View Specifications

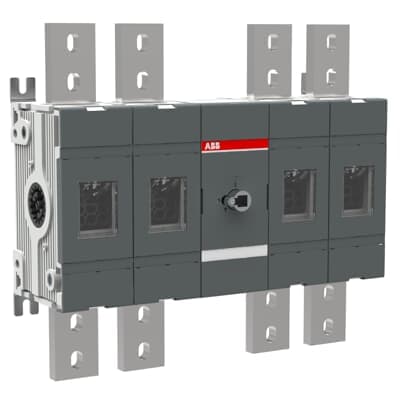

ABB OT1600E22

Selling Points

  • 1High Current Rating: 1600A for reliable operation in demanding electrical systems.
  • 2Front Operated: Easy to use with a front-operated mechanism for convenient switching.
  • 3Base Mounting: Versatile base mounting design for flexible installation options.
  • 4Lug Terminals: Includes terminal bolt kit for secure connections.
  • 5Compliance with Standards: Meets IEC 60947-3 and other international electrical standards for safety and reliability.
Product Details
OT1600E22
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC301233D0201
Pollution Degree
3
Product Net Width
414.5 mm
Product Net Height
372 mm
Product Net Depth / Length
167 mm
Product Net Weight
21.6 kg
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Conventional Thermal Current (Ithe)
Fully Enclosed 1600 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
Rated Operational Power AC-23A (Pe)
(400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 92 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles 22 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3661776
Manufacturer ID
1SCA101545R1001

Specifications may be subject to change without notice
