Product Model

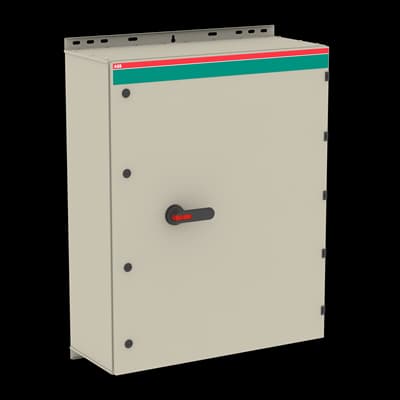

OT1600KLUU3BZ
Selling Points
- 1Galvanized Steel Enclosure: Durable and robust, with a polyester coating for enhanced protection.
- 2UV Light Resistance: Designed to withstand UV radiation, ensuring long-lasting performance in outdoor environments.
- 3Ingress Protection: Meets IP65 standards, providing comprehensive protection against dust and water.
- 4Gas Pressure Relief: Equipped with an inbuilt gas pressure relief function to protect users in case of internal arcs.
- 5Padlockable Handle: Secure operation with padlockable handles, ensuring safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 800 mm | Product Net Height | 1200 mm |
Product Net Depth / Length | 330 mm | Product Net Weight | 89.3 kg |
Cable Entry Position | Top/Bottom | Cable Outlets Per Side | Blank /Blank |
Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 8pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Handle Color | Black | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC |
Mounted Auxiliary Contacts | 0 NO, 0 NC | Neutral Type | Detachable neutral |
Number of Auxiliary Contacts NC | 0 | Number of Auxiliary Contacts NO | 0 |
Number of Poles | 3 | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 110 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
Recommended Screw Driver | Main Circuit M12 | Standards | IEC 60947-1, -3 |
Tightening Torque | Main Circuit 75 N·m | Recommended Screw Driver | Main Circuit M12 |
Tightening Torque | Main Circuit 75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022750R1940 |
