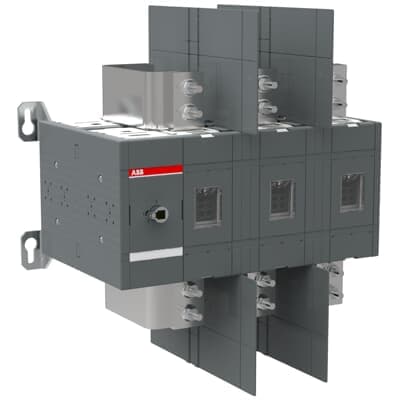

Product Model
OT1600U03
Selling Points
- 1High Performance: Handles up to 1600 A with a rated operational voltage of 1000 V.
- 2Safety Features: Meets UL 98 and CSA C22.2 NO.4 standards for reliable operation.
- 3Robust Design: Fully enclosed with a pollution degree of 3 and a mechanical durability of 2500.
- 4Easy Installation: Includes terminal bolt kit for straightforward setup.
- 5Compliance: Compliant with EU Directive 2011/65/EU and Amendment 2015/863 for RoHS status.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Net Width | 445 mm | Product Net Height | 546 mm |
Product Net Depth / Length | 335 mm | Product Net Weight | 53.7 kg |
Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 2500 |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 96 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
Standards | UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 56 N·m |
Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 1600 A |
Tightening Torque | acc. IEC 60947-1 56 N·m | Tightening Torque UL/CSA | 500 in·lb |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA144198R1001 |
Specifications may be subject to change without notice
