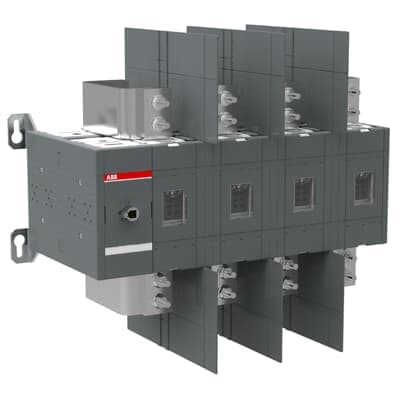

Product Model
OT1600U04
Selling Points
- 1High-performance switch-disconnector for heavy-duty applications.
- 24-pole front-operated design with excellent insulation.
- 3Modular design for space-saving configurations.
- 4Easy installation with adjustable shaft and snap-on mounting.
- 5Reliable in extreme conditions with a short-circuit rating of 100kA at 600V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Net Width | 570 mm | Product Net Height | 546 mm |
Product Net Depth / Length | 335 mm | Product Net Weight | 68.9 kg |
Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 2500 |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 96 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
Standards | UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 56 N·m |
Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 1600 A |
Tightening Torque | acc. IEC 60947-1 56 N·m | Tightening Torque UL/CSA | 500 in·lb |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA144199R1001 |
Specifications may be subject to change without notice
