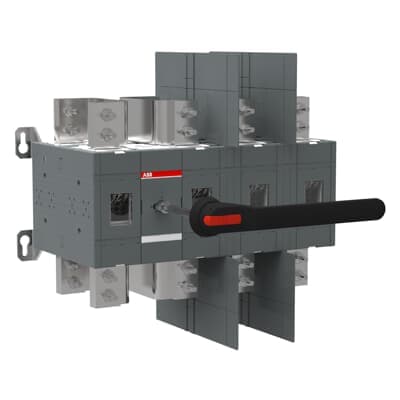

Product Model
OT1600U13P
Selling Points
- 1Compact design for space-saving installations.
- 2Equipped with comprehensive safety features for secure operation.
- 3High-performance capabilities in demanding environments.
- 4Easy installation and maintenance due to modular design.
- 5Meets IEC60947-3 and UL508 standards for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Pollution Degree | 3 |
Product Net Width | 570 mm | Product Net Height | 546 mm |
Product Net Depth / Length | 335 mm | Product Net Weight | 69.6 kg |
Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 2500 | Mounting Type | Base mounting |
Number of Poles | 4P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 96 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
Special Functions | No | Standards | UL 98 / CSA C22.2 NO.4 |
Switches Operating Mechanism | Mechanism Between the Poles 13 (Between the Poles) | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 56 N·m | Maximum Operating Voltage UL/CSA | 600 V |
Ampere Rating | 1600 A | Tightening Torque | acc. IEC 60947-1 56 N·m |
Tightening Torque UL/CSA | 500 in·lb | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA144210R1001 |
Specifications may be subject to change without notice
