ABBIsolating switch
Product Model

OT1600U22P

Manufacturer

ABB

Category

Isolating switch

Product ID

85639

In Stock
Last updated: 2025/4/18
View Specifications

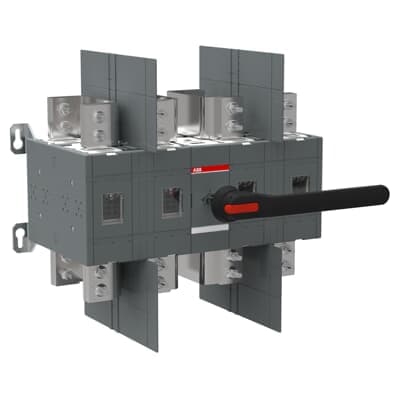

ABB OT1600U22P

Selling Points

  • 1The OT1600U22P features a compact solution ideal for space-constrained environments.
  • 2Equipped with advanced safety features and reliable performance in demanding applications.
  • 3Built with durable materials, ensuring long-lasting operations under various conditions.
  • 4Includes comprehensive safety features, including IP65 protection and padlockable handles.
  • 5Adjustable shaft for different installation depths, making it versatile for various setups.
Product Details
OT1600U22P
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Pollution Degree
3
Product Net Width
570 mm
Product Net Height
546 mm
Product Net Depth / Length
335 mm
Product Net Weight
69.6 kg
Conventional Thermal Current (Ithe)
Fully Enclosed 1600 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
2500
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 96 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Special Functions
No
Standards
UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism Between the Poles 22 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 56 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
1600 A
Tightening Torque
acc. IEC 60947-1 56 N·m
Tightening Torque UL/CSA
500 in·lb
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Manufacturer ID
1SCA144211R1001

Specifications may be subject to change without notice
