Product Model

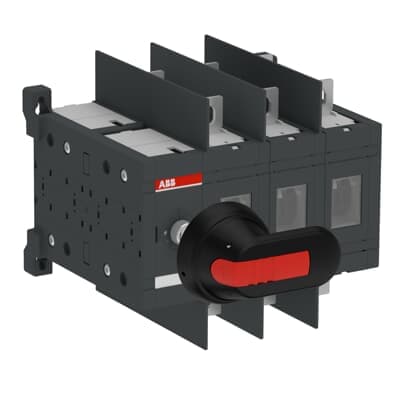

OT160E03WDP
Selling Points
- 1Designed to operate in harsh environments with high performance.
- 2Compact size for efficient use in panel mounting applications.
- 3Non-fusible design ensures continuous protection against electrical faults.
- 4Suitable for machinery, power distribution, switchboards, motor control centers, and photovoltaic installations.
- 5Simple and straightforward installation process for quick setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 170 mm | Product Net Height | 150 mm |
Product Net Depth / Length | 159.5 mm | Product Net Weight | 2.9 kg |
Cable Cross-Section | Cu 10 ... 70 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
Degree of Protection | Front IP20 | Handle Color | Black |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 20000 | Number of Poles | 6P |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 160 A (690 V) 160 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 135 A (500 V) 125 A (690 V) 80 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 75 kW (690 V) 75 kW |
Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA108487R1001 |
Specifications may be subject to change without notice
