Product Model

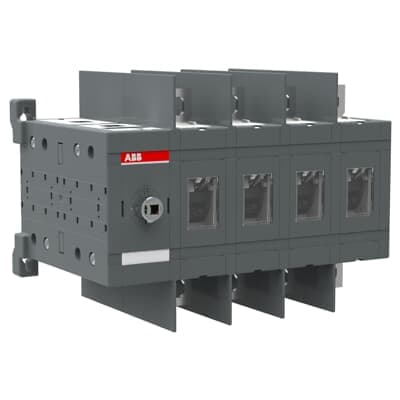

OT160E04WC
Selling Points
- 1High-Reliability Design: Built to withstand harsh industrial environments with robust construction.
- 2IP65 Protection: Ensures durability and resistance to dust and water, extending the switch's lifespan.
- 3Customizable Handle: Includes a black plastic IP65 pistol-type handle that is padlockable in the 0-position for added security.
- 4Easy Installation: Designed for straightforward cable connection with a bolt set, simplifying setup processes.
- 5Versatile Usage: Suitable for various industrial applications, including those requiring high reliability and safety features.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
Pollution Degree | 3 | Product Net Width | 237 mm 9.33 in |
Product Net Height | 170 mm 6.69 in | Product Net Depth / Length | 160 mm 6.3 in |
Product Net Weight | 3.99 kg 8.8 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 160 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 160 A | Degree of Protection | Front IP20 |
Distance Between Phases | Wide phase distance | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
Number of Poles | 4P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 2.4 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 160 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 160 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW (500 V) 110 kW (690 V) 160 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) |
Terminal Type | Screw Terminals | Terminal Width | 20 mm |
Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m | Transition Type | Open |
Ampere Rating | 160 A | Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022775R0570 |
