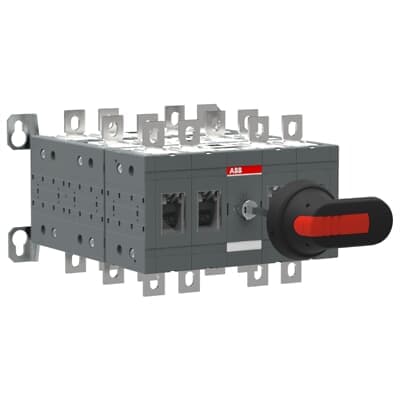

Product Model
OT160E22YP
Selling Points
- 1High thermal current rating up to 1600 A.
- 2Robust and compact design for easy installation.
- 3Front-operated mechanism with IP00 degree of protection.
- 4Suitable for a wide range of voltages (380-415 V, 500 V, 690 V).
- 5Meets IEC 60947-3 standards for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 229 mm 9.02 in | Product Net Height | 150 mm 5.91 in |
Product Net Depth / Length | 236 mm 9.29 in | Product Net Weight | 229 kg 504.86 lb |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 160 A | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Handle Color | Black | Handle Type | Handle and shaft included |
Mounting Type | Base Mounting | Number of Poles | 4P |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 2.4 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW (500 V) 110 kW (690 V) 160 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms | Switches Operating Mechanism | Mechanism Between the Poles 22 (Between the Poles) |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
Transition Type | Open | Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA123575R1001 |
Specifications may be subject to change without notice
