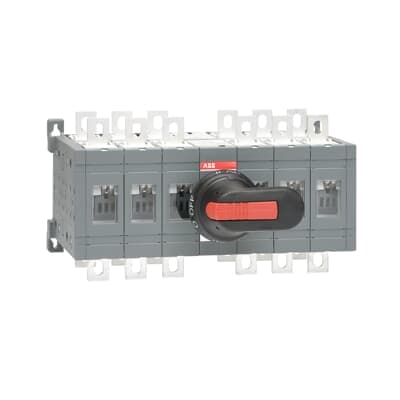

Product Model
OT160E33CP
Selling Points
- 1High-quality electrical switch with a black plastic IP65-rated pistol type handle.
- 2Secure operations with door interlock in I- and II-positions and padlockable in the 0-position.
- 3Suitable for various applications with a shaft and bolt set for cable connection.
- 4Meets pollution degree 3 and rated insulation voltage of 1000 V.
- 5Compact design with dimensions: 275 mm width, 150 mm height, and 160 mm depth.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
Pollution Degree | 3 | Product Net Width | 275 mm 10.83 in |
Product Net Height | 150 mm 5.91 in | Product Net Depth / Length | 160 mm 6.3 in |
Product Net Weight | 5.5 kg 12.13 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 160 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 160 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Handle and shaft included | Mounting Type | Base mounting |
Number of Poles | 6P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 2.4 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 160 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 160 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW (500 V) 110 kW (690 V) 160 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms | Switches Operating Mechanism | Mechanism Between the Poles 33 (Between the Poles) |
Terminal Type | Screw Terminals | Terminal Width | 20 mm |
Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m | Transition Type | Open |
Ampere Rating | 160 A | Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601248 |
Manufacturer ID | 1SCA118537R1001 |
Specifications may be subject to change without notice
