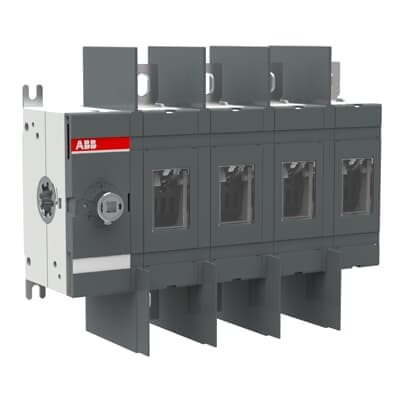

Product Model
OT160EV04W
Selling Points
- 14-pole, front-operated switch-disconnector with black IP65 handle and shaft.
- 2Terminal bolt kit included for secure connections.
- 3Rated for 200A at 380-415V, 500V, 690V, and 1000V.
- 4Meets IEC/EN 60664-1 standards for insulation voltage.
- 5Compact design with dimensions of 180.5 mm x 150 mm x 82.5 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301265D0201 |
Pollution Degree | 3 | Product Net Width | 150 mm |
Product Net Height | 212.5 mm | Product Net Depth / Length | 83 mm |
Product Net Weight | 1.9 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
Degree of Protection | Front IP00 | Handle Type | Handle and shaft not included |
Lock Type | No | Mechanical Durability | 20000 |
Number of Poles | 4P | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 3.2 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 48 kW (400 ... 415 V) 88 kW (500 V) 112 kW (690 V) 144 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
Standards | IEC 60947-3 | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA120522R1001 |
Specifications may be subject to change without notice
