Product Model

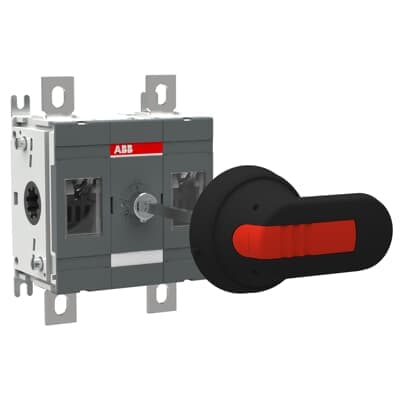

OT160EV11P
Selling Points
- 1Designed for measurable savings, the OT160EV11P switch disconnector offers a simple and smart design.
- 2Compact in size, yet powerful in performance, making it suitable for various industrial applications.
- 3Provides IP65 protection and meets high dielectric strength standards for reliable operation.
- 4Suitable for a wide range of applications including machinery, power distribution, and motor control center installations.
- 5Easy to use and install, reducing stock expenses and improving operational efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301265D0201 |
Pollution Degree | 3 | Product Net Width | 115.5 mm |
Product Net Height | 150 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 1.12 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 200 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 160 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 20000 | Mounting Type | Base mounting |
Number of Poles | 2P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 3.2 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A (1000 V) 200 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A (500 V) 200 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 48 kW (400 ... 415 V) 88 kW (500 V) 112 kW (690 V) 144 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism Between the Poles 11 (Between the Poles) | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA122710R1001 |
Specifications may be subject to change without notice
