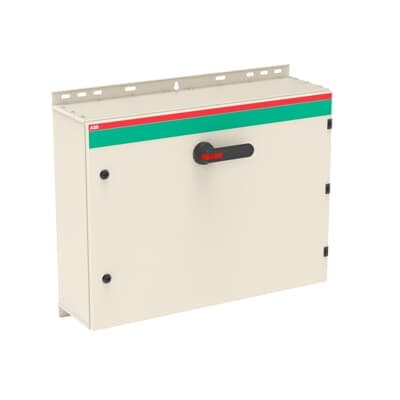

Product Model
OT160EVAUC6TZ
Selling Points
- 1Made from UV-resistant materials for long-lasting performance in harsh conditions.
- 2Ensures a high degree of protection against dust and water, suitable for both indoor and outdoor use.
- 3Includes padlockable handles, cover interlocks, and gas pressure relief functions for enhanced safety.
- 4Utilizes a web-based selection tool (e-Configure) to simplify the selection process for the right switch.
- 5Suitable for 4- and 5-wire systems, with various pole versions available to meet diverse application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 800 mm | Product Net Height | 600 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 35.6 kg |
Cable Entry Position | Bottom/Bottom | Cable Outlets Per Side | Blank / 4xC-flange, Knock-outs: 2x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
Connecting Capacity Main Circuit | Hole Diameter 8 mm Screw Clamp / PE Terminal 4pc,10 ... 70 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Enclosure Type | MSC | Handle Color | Black |
Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
Maximum Mounted Auxiliary Contacts | 4 NO, 2 NC | Mounted Auxiliary Contacts | 4 NO, 2 NC |
Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 2 |
Number of Auxiliary Contacts NO | 4 | Number of Poles | 6P |
Pollution Degree | 3 | Position of Line Terminals | Bottom In - Bottom Out |
Rated Conditional Short-Circuit Current (Inc) | 40.5 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW (500 V) 112 kW (690 V) 144 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
Recommended Screw Driver | Main Circuit M8 | Standards | IEC 60947-1, -3 |
Terminal Type | Bolt | Tightening Torque | Main Circuit 6 N·m |
Recommended Screw Driver | Main Circuit M8 | Tightening Torque | Main Circuit 6 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | E-Number (Sweden) | 3135022 |
Manufacturer ID | 1SCA147986R1001 |
