Product Model

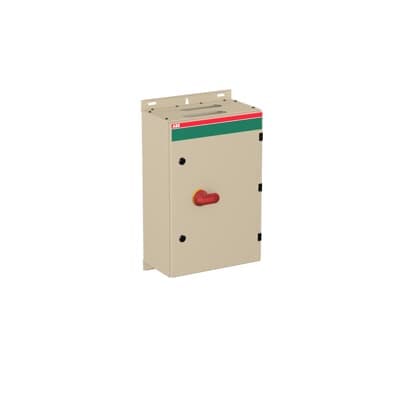

OT160EVLCC3AZ
Selling Points
- 1High performance and reliability in electrical circuit control.
- 2Compact and powerful design for easy installation and space-saving.
- 3Suitable for a variety of industrial applications including mechanical equipment and power distribution.
- 4Meets IEC standards with IP65 rating for protection against dust and water.
- 5Available with adjustable mounting feet for flexible installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 400 mm | Product Net Height | 600 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 19.41 kg |
Cable Entry Position | Top/Bottom | Cable Outlets Per Side | 2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
Connecting Capacity Main Circuit | Hole Diameter 8 mm Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Enclosure Type | MSC | Handle Color | Red / Yellow |
Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 2 NO, 1 NC |
Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 1 |
Number of Auxiliary Contacts NO | 2 | Number of Poles | 3P |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out |
Rated Conditional Short-Circuit Current (Inc) | 40.5 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW (500 V) 112 kW (690 V) 144 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
Recommended Screw Driver | Main Circuit M8 | Standards | IEC 60947-1, -3 |
Terminal Type | Bolt | Tightening Torque | Main Circuit 6 N·m |
Recommended Screw Driver | Main Circuit M8 | Tightening Torque | Main Circuit 6 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA148590R1001 |
Specifications may be subject to change without notice
