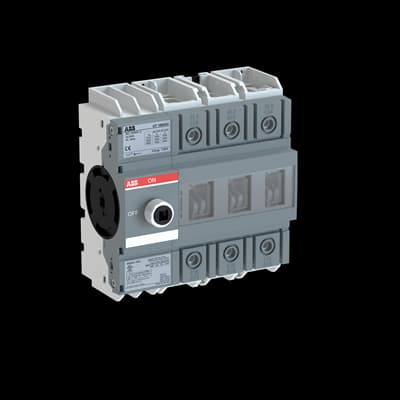

Product Model
OT160G03/B10
Selling Points
- 1High Performance: Rated for 160A at 12kV with a fully enclosed design.
- 2Safety Features: Compliant with IEC/EN 60664-1 standards for rated impulse withstand voltage.
- 3Versatile Operation: Operates at 380-415V, 500V, and 690V.
- 4Durable Construction: Meets UL/CSA standards for maximum operating voltage and ampere rating.
- 5Easy Installation: Available with screw terminals and suitable for single-phase applications up to 20 HP or 30 HP at 440-480V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC301267D0201 |
Pollution Degree | 3 | Product Net Width | 123 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 73 mm |
Product Net Weight | 7.8 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
Conventional Thermal Current (Ithe) | Fully Enclosed 160 A | Degree of Protection | Front IP20 |
Handle Type | Handle and shaft not included | Lock Type | No |
Mechanical Durability | 20000 | Number of Poles | 3P |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 90 kW (690 V) 132 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 6 N·m | Maximum Operating Voltage UL/CSA | 600 V |
Ampere Rating | 125 A | Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp (440 ... 480 V AC) Single Phase 30 Hp |
Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA146245R1001 |
Specifications may be subject to change without notice
