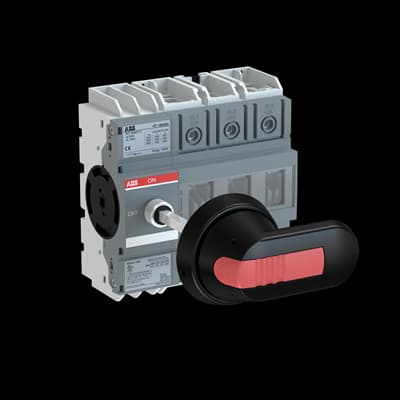

Product Model
OT160G03P
Selling Points
- 1High Current Rating: Handles up to 160A at 380-415V, 500V, and 690V.
- 2IP65 Protection: Features a black IP65 handle and shaft for robust protection.
- 3Front Operation: Easy to use with front and side operation mechanisms.
- 4Compact Design: Compact dimensions (123mm x 130mm x 72mm) for space-efficient installation.
- 5Compliance Standards: Meets IEC 60947-3, UL 98, and CSA C22.2 NO.4 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC301267D0201 |
Pollution Degree | 3 | Product Net Width | 123 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 73 mm |
Product Net Weight | 0.9 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 160 A | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Handle Color | Black | Handle Type | Handle and shaft included |
Lock Type | Yes | Mechanical Durability | 20000 |
Mounting Type | Base mounting | Number of Poles | 3P |
Operating Mode | Front and side operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA (200 A fuse, 690 V) 50 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 90 kW (690 V) 132 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
Special Functions | No | Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 6 N·m | Maximum Operating Voltage UL/CSA | 600 V |
Ampere Rating | 125 A | Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp (440 ... 480 V AC) Single Phase 30 Hp |
Tightening Torque | acc. IEC 60947-1 6 N·m | Tightening Torque UL/CSA | 53 in·lb |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3638769 |
E-Number (Norway) | 4372122 | E-Number (Sweden) | 3171058 |
Manufacturer ID | 1SCA135139R1001 |
Specifications may be subject to change without notice
