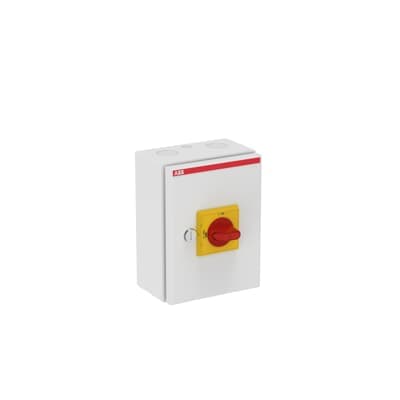

Product Model
OT16ETMM3AE
Selling Points
- 1Compact design with a uniquely short current path for efficient operation.
- 2Finger-proof dead front construction and terminal shrouds reduce the risk of live part contact.
- 3Easy installation with snap-on or screw-mounted options and adjustable feet for top or side mounting.
- 4Welded contact protection and clear position indication ensure reliable operation.
- 5Surface mountable with a wide range of accessories for customized installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 150 mm | Product Net Height | 200 mm |
Product Net Depth / Length | 100 mm | Product Net Weight | 1.52 kg |
Cable Cross-Section | 0.75 ... 10 mm² | Cable Entry Position | Top and/or Bottom |
Cable Outlets Per Side | 2xø25.5+ø16.5 / 2xø25.5+ø16.5 | Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² Screw Clamp / PE Terminal 2pc,1.5 ... 25 mm² |
Conventional Thermal Current (Ithe) | Fully Enclosed 40 A | Degree of Protection | acc. to IEC 60529 IP65 |
Enclosure Material | Steel sheet | Handle Color | Red / Yellow |
Handle Type | Selector handle | Impact Resistance Rating | Housing IK09 |
Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 1 NO, 0 NC |
Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 0 |
Number of Auxiliary Contacts NO | 1 | Number of Poles | 3P |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 1.6 W |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 32 A (500 V) 32 A (690 V) 32 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A (500 V) 16 A (690 V) 10 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW (500 V) 7.5 kW (690 V) 7.5 kW |
Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA | Recommended Screw Driver | Main Circuit Pozidriv 2 |
Special Functions | EMC | Standards | IEC 60947-1, -3 |
Tightening Torque | Main Circuit 0.8 N·m | Wire Stripping Length | 10 mm |
Wire Stripping Length | 10 mm | Recommended Screw Driver | Main Circuit Pozidriv 2 |
Tightening Torque | Main Circuit 0.8 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022742R0780 |
