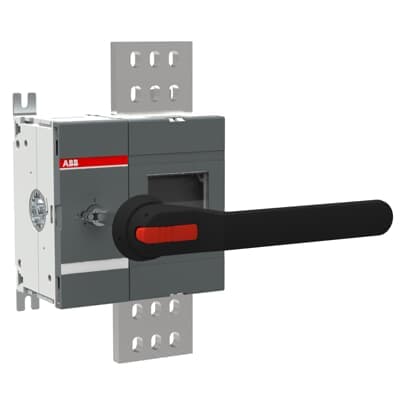

ABB OT2500E01P

Selling Points

  • 1High-Voltage Capability: Handles high-voltage applications with reliable operation.
  • 2Front Operated: Easy to use with a front-operated mechanism.
  • 3Base Mounting: Conveniently mounted on a base for easy installation.
  • 4Lug Terminals: Equipped with lug terminals for secure connections.
  • 5Mechanical Durability: Built to last with a mechanical durability of 6000 cycles.
Product Details
OT2500E01P
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC301268D0201
Pollution Degree
3
Product Net Width
220.5 mm
Product Net Height
376.5 mm
Product Net Depth / Length
145.5 mm
Product Net Weight
10.6 kg
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2500 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
1P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch 01 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA113954R1001
