Product Model

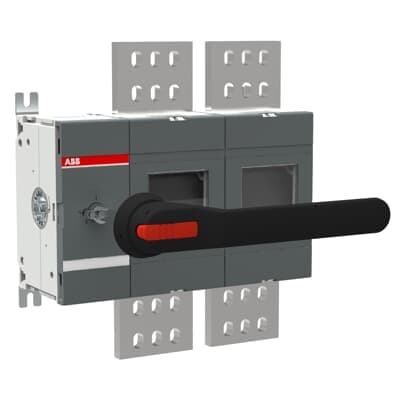

OT2500E02P
Selling Points
- 12-pole, front-operated switch-disconnector with black IP65 handle and shaft.
- 2Includes terminal bolt kit for secure connections.
- 3Rated impulse withstand voltage (Uimp) of 12 kilovolt.
- 4Compatible with OT range, meeting IEC 60947-3 standards.
- 5Base mounting type for easy installation in various settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
Pollution Degree | 3 | Product Net Width | 346.5 mm |
Product Net Height | 376.5 mm | Product Net Depth / Length | 145.5 mm |
Product Net Weight | 17.2 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A |
Degree of Protection | Front IP00 | Distance Between Phases | Standard |
Handle Color | Black | Handle Type | Handle and shaft included |
Lock Type | Yes | Mechanical Durability | 6000 |
Mounting Type | Base mounting | Number of Poles | 2 |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 85 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA113956R1001 |
Specifications may be subject to change without notice
