ABBIsolating switch
Product Model

OT2500E03CP

Manufacturer

ABB

Category

Isolating switch

Product ID

87044

In Stock
Last updated: 2025/4/25
View Specifications

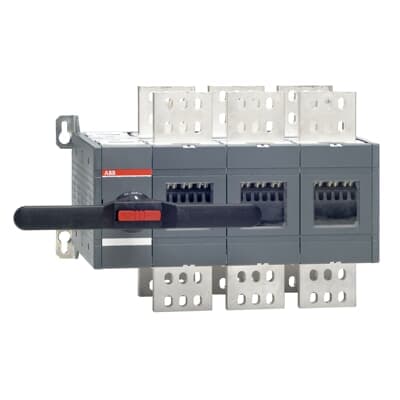

ABB OT2500E03CP

Selling Points

  • 1High current rating of 2500A for demanding electrical applications.
  • 2Durable design with a black plastic IP65 handle for robust performance.
  • 3Includes a padlockable handle in the 0-position for enhanced security.
  • 4Suitable for front mounting with a 4-hole configuration, ideal for distribution boards.
  • 5Meets EU Directive 2011/65/EU and Amendment 2015/863 for environmental compliance.
Product Details
OT2500E03CP
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
538 mm 21.18 in
Product Net Height
377 mm 14.84 in
Product Net Depth / Length
335 mm 13.19 in
Product Net Weight
54.285 kg 119.68 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2500 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 2000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 2000 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
100 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
2500 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3650331
Manufacturer ID
1SCA105615R1001
