ABBIsolating switch
Product Model

OT2500E03N3P

Manufacturer

ABB

Category

Isolating switch

Product ID

85943

In Stock
Last updated: 2025/4/19
View Specifications

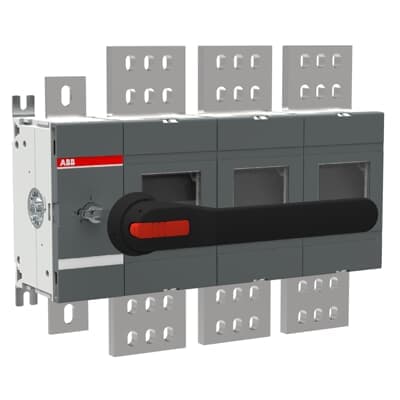

ABB OT2500E03N3P

Selling Points

  • 1High thermal current (2500 A at 40 °C) for reliable performance.
  • 2Front-operated design for easy manual operation.
  • 3Robust IP65 protection for durability and safety.
  • 4Adjustable shaft for versatile installation depths.
  • 5Includes terminal bolt kit and padlockable handle for added security.
Product Details
OT2500E03N3P
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC301268D0201
Pollution Degree
3
Product Net Width
472.5 mm
Product Net Height
376.5 mm
Product Net Depth / Length
145.5 mm
Product Net Weight
26.8 kg
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2500 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Left Side
Fourth Pole Type
Detachable Neutral Link Integrated Into the Mechanism
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
3P+N
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch 03 (Left Side)
Terminal Type
Lug terminals
Terminal Width
100 mm
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641586
Manufacturer ID
1SCA108035R1001
