OT2500E03P

Manufacturer

ABB

Category

Isolating switch

Product ID

86605

In Stock
Last updated: 2025/4/22
View Specifications

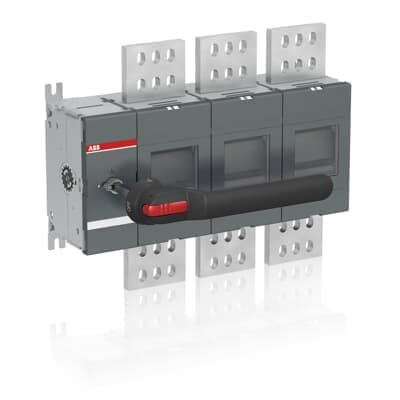

ABB OT2500E03P

Selling Points

  • 13-pole, front-operated switch-disconnector with robust design.
  • 2Black IP65 handle and shaft for enhanced protection.
  • 3Terminal bolt kit included for easy installation.
  • 4Rated for 2500 A at 40 °C in conventional free-air conditions.
  • 5Meets IEC 60947-3 standards for reliability and safety.
Product Details
OT2500E03P
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC301268D0201
Pollution Degree
3
Product Net Width
472.5 mm
Product Net Height
376.5 mm
Product Net Depth / Length
145.5 mm
Product Net Weight
25.8 kg
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2500 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch 03 (Left Side)
Terminal Type
Lug terminals
Terminal Width
100 mm
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641585
Manufacturer ID
1SCA104972R1001
