Product Model

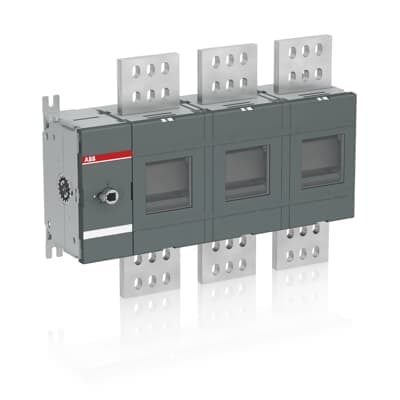

OT2500E03W4/C9
Selling Points
- 1Rated Operational Voltage: 1000 V for main circuit.
- 2High Short-Circuit Making Capacity: 176 kA at 690 V.
- 3Robust Short-Time Withstand: Designed for demanding electrical environments.
- 4Reliable Switch-Disconnector: Ensures safe and efficient operation.
- 5Durable Construction: Built to withstand harsh industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
Pollution Degree | 3 | Product Net Width | 930 mm |
Product Net Height | 1000 mm | Product Net Depth / Length | 1200 mm |
Product Net Weight | 426.2 kg | Degree of Protection | Front IP00 |
Handle Type | Handle and shaft not included | Lock Type | No |
Mechanical Durability | 6000 | Number of Poles | 3P |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 85 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA | Standards | IEC 60947-3 |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA126299R1001 |
