Product Model

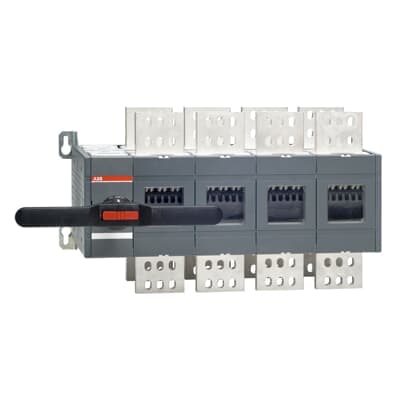

OT2500E04CP
Selling Points
- 1High current rating up to 2500 A for demanding applications.
- 2IP65 protection ensures durability in harsh environments.
- 3Padlockable handle in the 0-position for enhanced security.
- 4Integrated door interlock in I- and II- positions for safety.
- 5Compact design with a black plastic pistol-type handle for easy operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
Pollution Degree | 3 | Product Net Width | 664 mm 26.14 in |
Product Net Height | 377 mm 14.84 in | Product Net Depth / Length | 335 mm 13.19 in |
Product Net Weight | 69.55 kg 153.33 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
Handle Color | Black | Handle Type | Handle and shaft included |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 85 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 2000 A |
Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 2000 A | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) |
Terminal Type | Screw Terminals | Terminal Width | 100 mm |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
Ampere Rating | 2500 A | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3650333 |
Manufacturer ID | 1SCA103906R1001 |
