Product Model

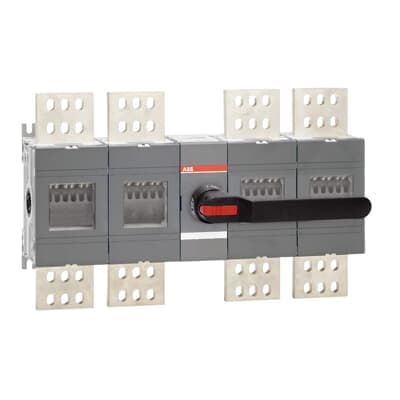

OT2500E22P-135
Selling Points
- 1High-Rated Current Capability: Handles up to 2500 A with DC-20B rating.
- 2Advanced Safety Features: Includes a black IP65 handle and shaft, terminal bolt kit, and padlockable in OFF position.
- 3Versatile Mounting Options: Available with direct mount handle or external pistol handle and shaft.
- 4Comprehensive Certifications: Meets IEC 60947-3 standards and has ATEX, CE, and DNV GL certifications.
- 5Durable Design: Constructed for mechanical durability with a base mounting type and 4-pole configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
Pollution Degree | 3 | Product Frame Size | OT2500-135 |
Product Net Width | 598.5 mm 23.6 in | Product Net Height | 376.5 mm 14.8 in |
Product Net Depth / Length | 145.5 mm 5.7 in | Product Net Weight | 33.3 kg 73.4 lb |
Connection Configuration | Connection type 2 or 3 | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A Π= 40 °C 4000 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 2500 A Fully Enclosed 4000 A | Degree of Protection | Front IP00 |
Handle Color | Black | Handle Length | 274 mm 10.8 in |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 600 cycle | Mounting Type | Base mounting |
Number of Circuits | 1 2 | Number of Poles | 4 |
Operating Mode | Front Operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 85 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1500 V |
Rated Operational Current AC-20B | (1000 V AC) 2500 A (1000 V AC) 4000 A | Rated Operational Current DC-20B | (1500 V DC) 2500 A (1500 V DC) 4000 A |
Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 80 kA for 0.3 s 100 kA | Rated Voltage (Ur) | 1500 V |
Shaft Diameter | 12 mm 0.47 in | Shaft Length | 280 mm 11.0 in |
Special Functions | No | Standards | IEC 60947-1, -3 |
Switches Operating Mechanism | Mechanism Between the Poles 22 (Between the Poles) | Terminal Type | Lug terminals |
Terminal Width | 100 mm 3.94 in | Utilization | Energy Storage System (ESS) |
Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA160400R1001 |
Specifications may be subject to change without notice
