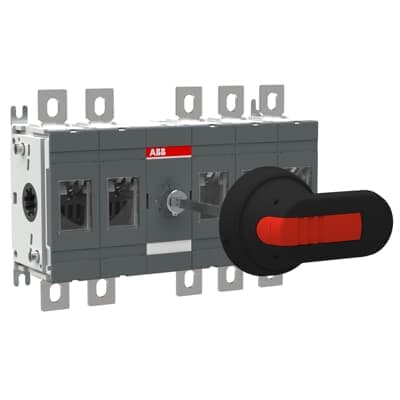

Product Model
OT250E23P
Selling Points
- 1High-performance electrical control with up to 250A and 1000VDC/AC.
- 2Enclosed design for outdoor use, ensuring durability and protection.
- 3Front-operated switch-disconnectors with IP65 protected handles for added safety.
- 4Adjustable shaft for versatile installation depths, enhancing flexibility.
- 5Suitable for a wide range of applications, including industrial and commercial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301265D0201 |
Pollution Degree | 3 | Product Net Width | 220.5 mm |
Product Net Height | 150 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 2.3 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 250 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 250 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 20000 | Mounting Type | Base mounting |
Number of Poles | 5P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 6.5 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
Rated Operational Current AC-21B (Ie) | (690 V) 250 A | Rated Operational Current DC-21B (Ie) | (800 V) 250 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 23 (Between the Poles |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA103715R1001 |
Specifications may be subject to change without notice
