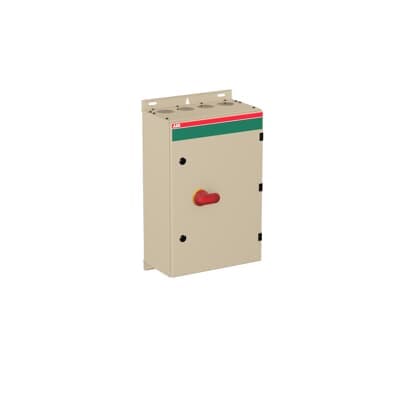

Product Model
OT250KLRR4AZ
Selling Points
- 1Galvanized Steel Enclosure with Polyester Coating: Durable and resistant to UV light and ingress protection.
- 2IP65 Protection: Ensures reliable operation in harsh environments.
- 3Padlockable Handle: Securely lock the switch in place with up to 3 padlocks.
- 4Interlocked Cover: Prevents accidental operation and ensures safety.
- 5High-Power Rating: Handles up to 250A and 132kW, suitable for demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 400 mm | Product Net Height | 600 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 15.31 kg |
Cable Entry Position | Top/Bottom | Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
Connecting Capacity Main Circuit | Hole Diameter 8 mm Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Handle Color | Red / Yellow | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
Mounted Auxiliary Contacts | 2 NO, 1 NC | Neutral Type | Switchable neutral |
Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 2 |
Number of Poles | 4P | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 6.5 W | Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW (500 V) 160 kW (690 V) 200 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA | Recommended Screw Driver | Main Circuit M8 |
Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 22 N·m |
Recommended Screw Driver | Main Circuit M8 | Tightening Torque | Main Circuit 22 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022542R7020 |
