Product Model

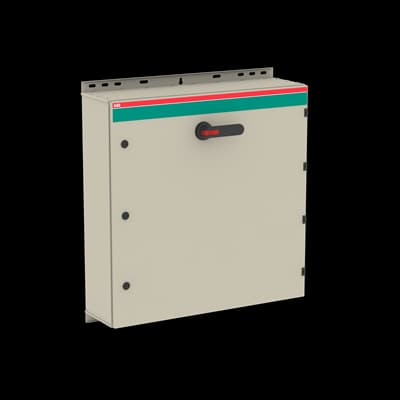

OT250KLUU6BLZ
Selling Points
- 1Built with high-impact PBT plastic for durability and resistance to chemicals.
- 2Ensures reliable operation in harsh environments with a degree of protection of IP65.
- 3Available in black, red-yellow, and dark grey/yellow handles for easy identification.
- 4Supports up to 690 V and 250 A, making it suitable for demanding industrial applications.
- 5Meets IEC 60947-3 and EN60204 safety standards for machinery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Product Net Width | 800 mm |
Product Net Height | 800 mm | Product Net Depth / Length | 230 mm |
Product Net Weight | 36.14 kg | Cable Entry Position | Top/Bottom |
Cable Outlets Per Side | Blank /Blank | Connecting Capacity Main Circuit | Hole Diameter 8 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² |
Conventional Thermal Current (Ithe) | Fully Enclosed 250 A | Degree of Protection | acc. to IEC 60529 IP65 |
Enclosure Material | Steel sheet | Handle Color | Black |
Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
Maximum Mounted Auxiliary Contacts | 4 NO, 2 NC | Mounted Auxiliary Contacts | 0 NO, 0 NC |
Neutral Type | Detachable neutral | Number of Auxiliary Contacts NC | 0 |
Number of Auxiliary Contacts NO | 0 | Number of Poles | 6P |
Rated Conditional Short-Circuit Current (Inc) | 40.5 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A (690 V) 250 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW (500 V) 160 kW (690 V) 200 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 22 N·m |
Tightening Torque | Main Circuit 22 N·m | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA103757R1001 |
Specifications may be subject to change without notice
