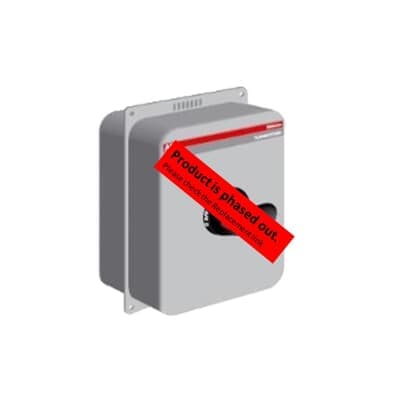

Product Model
OT25ELMM3B
Selling Points
- 1Compliant with IEC 60947-3: Meets international standards for disconnect switches.
- 2High Voltage Rating: 600Vac for reliable operation in demanding environments.
- 3High Current Rating: Ith 32A for handling significant electrical currents.
- 4Durable Construction: Made in Finland with high-quality materials.
- 5Versatile Mounting Options: Base DIN rail mounting for easy installation and flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP54 | Pollution Degree | 3 |
Product Net Width | 146 mm | Product Net Height | 198 mm |
Product Net Depth / Length | 110 mm | Product Net Weight | 1.6 kg |
Cable Cross-Section | 0.75 ... 10 mm² | Cable Entry Position | Up/Down |
Cable Outlets Per Side | 2xø25.5+ø16.5 / 2xø25.5+ø16.5 | Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
Degree of Protection | acc. to IEC 60529 IP54 | Enclosure Material | Steel sheet |
Handle Color | Black | Handle Type | Selector handle |
Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 0 NO, 0 NC |
Number of Poles | 3P | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 0.6 W | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 25 A (690 V) 25 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 20 A (690 V) 11 A |
Rated Operational Voltage | Main Circuit 750 V | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022461R8180 |
Specifications may be subject to change without notice
