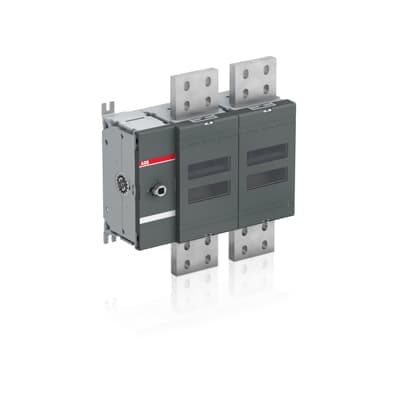

Product Model
OT4000E02
Selling Points
- 1Equipped with comprehensive inbuilt safety features for secure operation.
- 2Best short circuit performance available in the market for this current range, according to IEC 60947-3 standard.
- 3Optimized terminal design minimizes power losses and ensures easy cabling to other equipment.
- 4Available in two, three, and four pole versions with wide phase distance options for diverse installations.
- 5Each pole has open/closed indication, and labels for switch and pole markings are included for all-time reliable position indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301269D0201 |
Pollution Degree | 3 | Product Net Width | 374 mm |
Product Net Height | 410 mm | Product Net Depth / Length | 146 mm |
Product Net Weight | 24.8 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3800 A |
Degree of Protection | Front IP00 | Distance Between Phases | Standard |
Handle Type | Handle and shaft not included | Lock Type | No |
Mechanical Durability | 5000 | Mounting Type | Base mounting |
Number of Poles | 2P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 130 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3800 A |
Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3800 A | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 80 kA |
Special Functions | No | Standards | IEC 60947-3 |
Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA128596R1001 |
Specifications may be subject to change without notice
