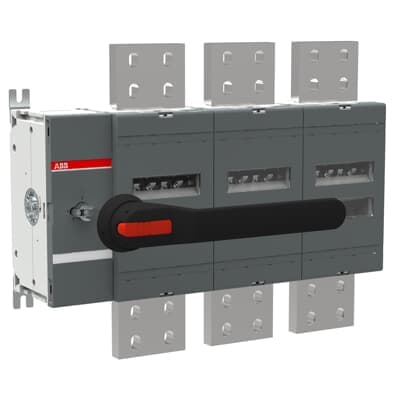

ABB OT4000E03P

Selling Points

  • 1High-performance switch-disconnector designed for reliable operation.
  • 2Compact solution with a uniquely short current path and double-sided spring construction.
  • 3Compliant with IEC 60947-3 standards for safety and efficiency.
  • 43-pole, front-operated, base-mounted design with black IP65 handle and shaft.
  • 5Includes terminal bolt kit for easy installation and customization options.
Product Details
OT4000E03P
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP00
Environmental Information
1SCC301269D0201
Pollution Degree
3
Product Net Width
514 mm
Product Net Height
410 mm
Product Net Depth / Length
146 mm
Product Net Weight
37 kg
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 3800 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
5000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 130 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 3800 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 3800 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 80 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch 03 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Manufacturer ID
1SCA124848R1001

Specifications may be subject to change without notice
