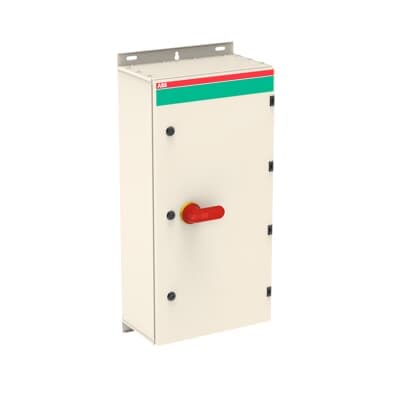

Product Model
OT400DLUU3BAZ
Selling Points
- 1Suitable for outdoor use with respect to UV light and ingress protection.
- 2Inbuilt gas pressure relief function to protect the user in case of an internal arc.
- 3Enclosed switch using a galvanized steel enclosure with polyester coating.
- 4Handle is padlockable for 3 padlocks, ensuring secure operation.
- 5Interlock function can be bypassed for thermographing, enhancing flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 400 mm | Product Net Height | 800 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 23.85 kg |
Cable Entry Position | Top/Bottom | Cable Outlets Per Side | Blank /Blank |
Connecting Capacity Main Circuit | Hole Diameter 10 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Enclosure Type | MSC | Handle Color | Red / Yellow |
Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mechanical Durability | 16000 cycle |
Mounted Auxiliary Contacts | 0 NO, 0 NC | Neutral Type | Detachable neutral |
Number of Auxiliary Contacts NC | 0 | Number of Auxiliary Contacts NO | 0 |
Number of Poles | 3P | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
Rated Impulse Withstand Voltage (Uimp) | 15 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (690 V) 400 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 230 kW (500 V) 280 kW (690 V) 400 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
Recommended Screw Driver | Main Circuit M10 | Standards | IEC 60947-1, -3 |
Tightening Torque | Main Circuit 44 N·m | Recommended Screw Driver | Main Circuit M10 |
Tightening Torque | Main Circuit 44 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA140694R1001 |
