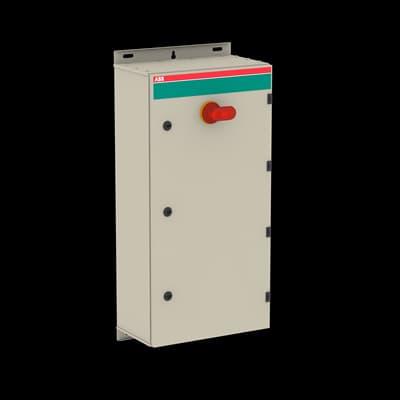

Product Model
OT400DUUR3AZ
Selling Points
- 1High Performance: Designed for reliable operation in industrial settings.
- 2Enhanced Safety: Meets EU RoHS Directive and features a 3-pole configuration.
- 3Compact Design: Dimensions: 800 mm x 400 mm x 230 mm.
- 4Robust Construction: Fully enclosed with a self-extinguishing plastic material.
- 5Versatile Application: Suitable for various industrial control systems and machinery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
Product Net Width | 400 mm | Product Net Height | 800 mm |
Product Net Depth / Length | 230 mm | Product Net Weight | 28.65 kg |
Cable Entry Position | Bottom/Bottom | Cable Outlets Per Side | Blank / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
Connecting Capacity Main Circuit | Hole Diameter 10 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Steel sheet |
Handle Color | Red / Yellow | Handle Type | Pistol handle |
Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
Mounted Auxiliary Contacts | 2 NO, 1 NC | Neutral Type | No neutral terminal |
Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 2 |
Number of Poles | 3P | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 355 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA | Recommended Screw Driver | Main Circuit M10 |
Special Functions | EMC | Standards | IEC 60947-1, -3 |
Tightening Torque | Main Circuit 44 N·m | Recommended Screw Driver | Main Circuit M10 |
Tightening Torque | Main Circuit 44 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022700R6420 |
