Product Model

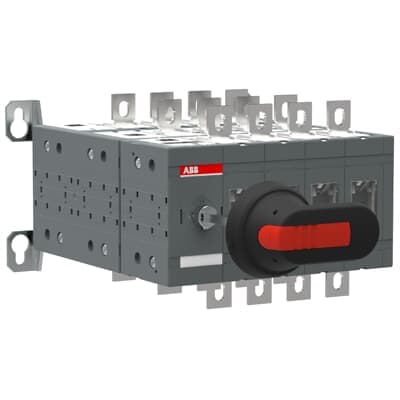

OT400E03YLP
Selling Points
- 1High thermal current rating of 400A for reliable operation.
- 2IP65 handle and shaft ensure robust protection against environmental factors.
- 33-pole, front-operated design for easy and safe switching.
- 4Includes terminal bolt kit for secure connections.
- 5Compliant with IEC 60947-3 standards for enhanced safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP20 | Product Net Width | 240 mm 9.45 in |
Product Net Height | 185 mm 7.28 in | Product Net Depth / Length | 371 mm 14.61 in |
Product Net Weight | 8.7 kg 19.18 lb | Degree of Protection | IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Handle and shaft included | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 10 W |
Rated Operational Voltage | Main Circuit 1000 V | Switches Operating Mechanism | 03 (Left Side) |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA145932R1001 |
Specifications may be subject to change without notice
