ABBIsolating switch
Product Model

OT400E04CLP

Manufacturer

ABB

Category

Isolating switch

Product ID

85972

In Stock
Last updated: 2025/4/19
View Specifications

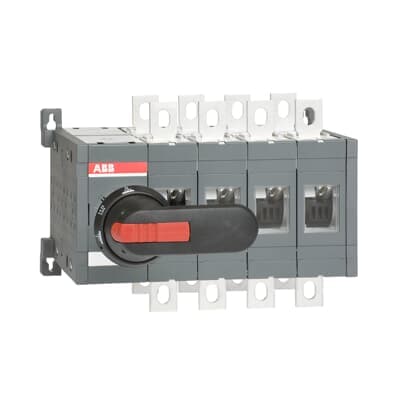

ABB OT400E04CLP

Selling Points

  • 1Closed Transition Principle: Operates on make-before-break without an OFF-position for seamless transitions.
  • 2High Insulation Voltage: Rated at 1000 V for reliable electrical insulation.
  • 3Robust Mechanical Endurance: Designed to withstand 10,000 operating cycles, ensuring long-lasting performance.
  • 4IP65 Rated Handle: Includes a black plastic pistol-type handle with an IP65 rating for durability and protection.
  • 5Versatile Application: Suitable for various industrial applications with a shaft and bolt set for cable connection.
Product Details
OT400E04CLP
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
265 mm 10.43 in
Product Net Height
185 mm 7.28 in
Product Net Depth / Length
203 mm 7.99 in
Product Net Weight
7.4 kg 16.31 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)
Fully Enclosed 400 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 400 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 400 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 400 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch 04 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Transition Type
Closed
Ampere Rating
400 A
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641624
Manufacturer ID
1SCA106405R1001

Specifications may be subject to change without notice
