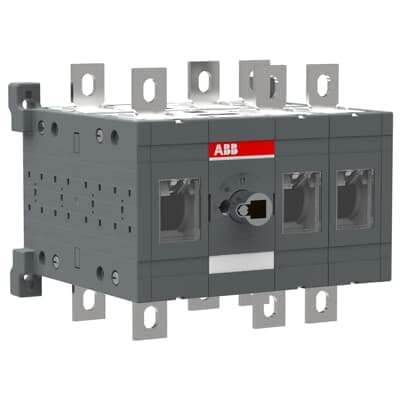

Product Model
OT400E12C
Selling Points
- 1Designed for precise control and reliable operation in demanding environments.
- 2Simple setup with minimal technical expertise required, suitable for local or remote control.
- 3Robust IP65 rating ensures protection against dust and water, enhancing durability.
- 4Suitable for a wide range of applications including industrial, commercial, and power distribution systems.
- 5Compact dimensions (221 mm x 185 mm x 203 mm) make it ideal for space-constrained installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
Pollution Degree | 3 | Product Net Width | 221 mm 8.7 in |
Product Net Height | 185 mm 7.28 in | Product Net Depth / Length | 203 mm 7.99 in |
Product Net Weight | 5.68 kg 12.52 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 400 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 400 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 400 A | Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 400 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 400 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms | Switches Operating Mechanism | Mechanism Between the Poles 12 (Between the Poles) |
Terminal Type | Screw Terminals | Terminal Width | 25 mm |
Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m | Transition Type | Open |
Ampere Rating | 400 A | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022777R0680 |
