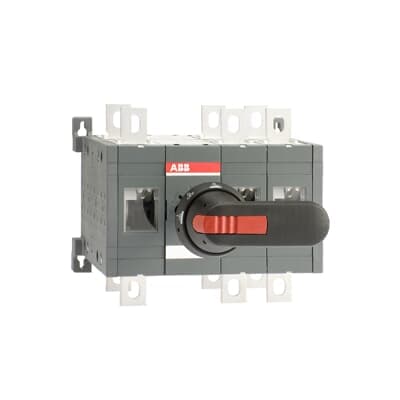

ABB OT400E12CFP

Selling Points

  • 1Robust Construction: Built with a black IP65 handle and shaft for enhanced durability and protection.
  • 2Easy Installation: Designed for easy installation with a pistol-type handle and bolt set for secure cable connection.
  • 3High Current Capacity: Handles up to 400 A with a rated operational voltage of 1000 V.
  • 4Mechanical Endurance: Withstands 10,000 operational cycles and 20,000 total operations.
  • 5Compact Design: Dimensions are 221 mm x 185 mm x 203 mm, making it ideal for space-constrained environments.
Product Details
OT400E12CFP
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
221 mm 8.7 in
Product Net Height
185 mm 7.28 in
Product Net Depth / Length
203 mm 7.99 in
Product Net Weight
6.165 kg 13.59 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)
Fully Enclosed 400 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 400 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 400 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 400 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Transition Type
Fast
Ampere Rating
400 A
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641681
Manufacturer ID
1SCA108652R1001
