ABBIsolating switch
Product Model

OT400E12CP

Manufacturer

ABB

Category

Isolating switch

Product ID

87552

In Stock
Last updated: 2025/4/27
View Specifications

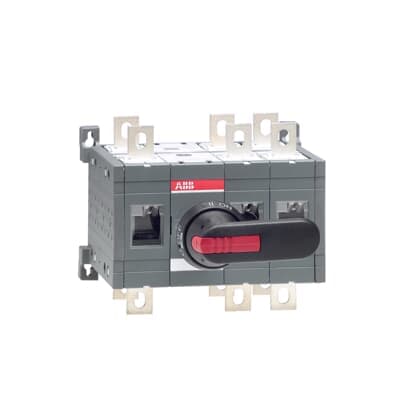

ABB OT400E12CP

Selling Points

  • 1High Performance: Handles currents from 16 A to 3200 A, ensuring reliable operation in various applications.
  • 2Easy Installation: Manually controlled with a simple handle operation, making it easy to install and use.
  • 3Robust Design: Constructed with a black plastic IP65 handle and shaft, providing protection against environmental factors.
  • 4Secure Operation: Features a padlockable handle in the OFF-position and door interlock in the ON-position for enhanced security.
  • 5Compliance: Meets EU Directive 2011/65/EU and Amendment 2015/863, ensuring RoHS compliance and environmental safety.
Product Details
OT400E12CP
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
221 mm 8.7 in
Product Net Height
185 mm 7.28 in
Product Net Depth / Length
203 mm 7.99 in
Product Net Weight
6 kg 13.23 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)
Fully Enclosed 400 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 400 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 400 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 400 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
25 mm
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Transition Type
Open
Ampere Rating
400 A
Tightening Torque
acc. IEC 60947-1 30 ... 44 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641514
Manufacturer ID
1SCA022776R9590

Specifications may be subject to change without notice
