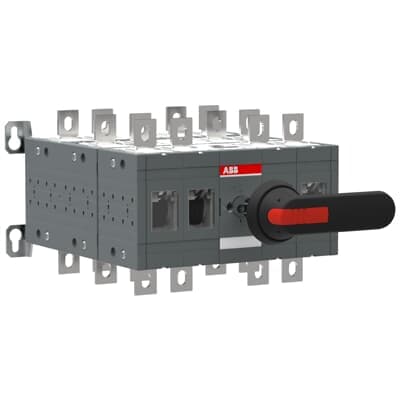

Product Model
OT400E22YP
Selling Points
- 1Engineered for robust operation in demanding industrial environments.
- 2Manual operation with a snap-on handle extension for smooth transitions.
- 3Secure the switch in the 0-position with three padlocks, ensuring safety and reliability.
- 4Rugged black plastic handle and IP65 protection against dust and water.
- 5Meets IEC 60947-6-1 standards, suitable for up to 415V AC-31B and AC-33B applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 284 mm 11.18 in | Product Net Height | 185 mm 7.28 in |
Product Net Depth / Length | 306 mm 12.05 in | Product Net Weight | 13.6 kg 29.98 lb |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 400 A | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Handle Color | Black | Handle Type | Handle and shaft included |
Mounting Type | Base Mounting | Number of Poles | 4P |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 400 kW | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms | Switches Operating Mechanism | Mechanism Between the Poles 22 (Between the Poles) |
Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
Transition Type | Open | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA123587R1001 |
Specifications may be subject to change without notice
