Product Model

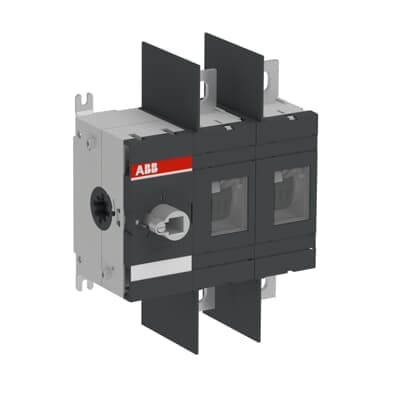

OT400U02
Selling Points
- 1High amperage rating of 400A for robust power distribution.
- 2Front-operated non-fusible design for reliable operation.
- 365kA short circuit current rating ensures safety in extreme conditions.
- 4Compact dimensions (220 mm H x 167 mm W x 85 mm D) for space-saving installations.
- 5Versatile mounting options including base, panel, and door mounts for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301266D0201 |
Pollution Degree | 3 | Product Net Width | 167 mm |
Product Net Height | 220 mm | Product Net Depth / Length | 105 mm |
Product Net Weight | 2.3 kg 5.1 lb | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
Degree of Protection | Front IP00 | Distance Between Phases | Standard |
Handle Type | Handle and shaft not included | Lock Type | No |
Mechanical Durability | 16000 | Mounting Type | Base mounting |
Number of Poles | 2P | Operating Mode | Front operated |
Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 10 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
Special Functions | No | Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) | Terminal Type | Lug terminals |
Tightening Torque | acc. IEC 60947-1 42.4 N·m | Maximum Operating Voltage UL/CSA | 600 V |
Ampere Rating | 400 A | Tightening Torque | acc. IEC 60947-1 42.4 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022748R1140 |
Specifications may be subject to change without notice
