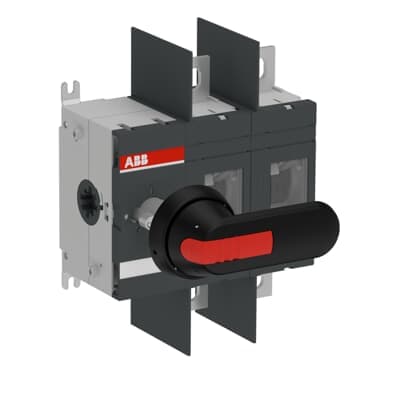

Product Model
OT400U02P
Selling Points
- 1High amperage rating of 400A for robust performance.
- 2Compact design with a small physical footprint for space-saving installations.
- 3Modular structure for easy installation and flexible design options.
- 4Visible contacts for increased safety in high-current applications.
- 5Durable and reliable performance tested against IEC60947-3, UL508, and UL98 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301266D0201 |
Pollution Degree | 3 | Product Net Width | 167 mm |
Product Net Height | 220 mm | Product Net Depth / Length | 105 mm |
Product Net Weight | 2.7 kg 5.9 lb | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
Degree of Protection | Front IP00 | Distance Between Phases | Standard |
Handle Color | Black | Handle Type | Handle and shaft included |
Lock Type | Yes | Mechanical Durability | 16000 |
Mounting Type | Base mounting | Number of Poles | 2P |
Operating Mode | Front operated | Pollution Degree | 3 |
Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA | Special Functions | No |
Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) |
Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 42.4 N·m |
Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 400 A |
Tightening Torque | acc. IEC 60947-1 42.4 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA022748R1310 |
