Product Model

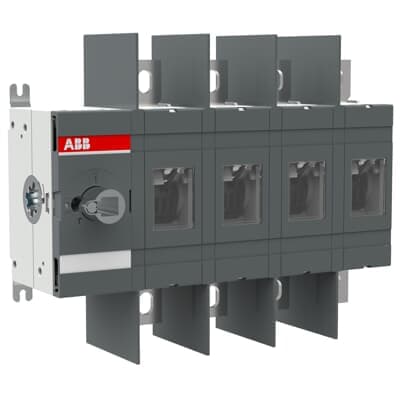

OT400U04-1000
Selling Points
- 1High amperage rating of 400A for robust applications.
- 24-pole design for efficient and reliable switching.
- 3Front-operated non-fusible switch with lug terminals.
- 4Compact dimensions (220 mm H x 275 mm W x 85 mm D) for space-saving installations.
- 5Meets UL98, CSA C22.2 NO.4, and IEC 60947-3 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SCC301266D0201 | Product Net Width | 275 mm |
Product Net Height | 220 mm | Product Net Depth / Length | 105 mm |
Product Net Weight | 3.8 kg | Number of Poles | 4P |
Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 1000 V |
Ampere Rating | 200 A | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA159825R1001 |
Specifications may be subject to change without notice
