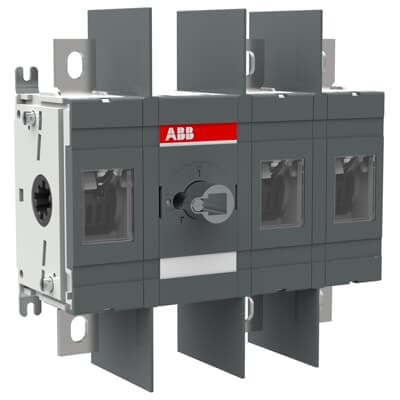

Product Model
OT400U12-1000
Selling Points
- 1High amperage rating of 400 A for efficient power distribution.
- 2Compact dimensions (220 mm H x 221 mm W x 85 mm D) for space-saving installations.
- 3Reliable in extreme conditions with a short circuit current rating of 65 kA.
- 4Front-operated non-fusible design for easy operation and maintenance.
- 5UL98 and IEC compliant for high safety standards in electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SCC301266D0201 | Product Net Width | 226 mm |
Product Net Height | 220 mm | Product Net Depth / Length | 105 mm |
Product Net Weight | 3.0 kg | Number of Poles | 3P |
Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
Standards | UL 98 / CSA C22.2 NO.4 | Maximum Operating Voltage UL/CSA | 1000 V |
Ampere Rating | 200 A | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA159826R1001 |
Specifications may be subject to change without notice
