Product Model

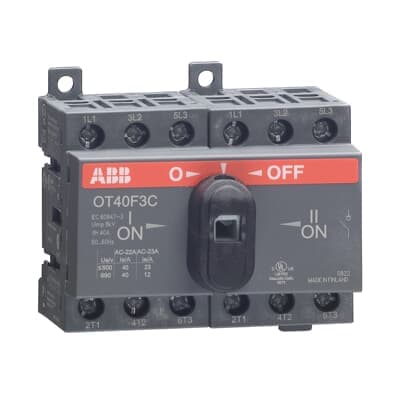

OT40F3C
Selling Points
- 1Reliable and Safe Electrical Operations: Ensures safe and reliable electrical operations with its robust design and high-quality components.
- 2Versatile Applications: Suitable for motor controller and motor overload protection applications, as well as various industrial settings.
- 3High Amperage Rating: Features a 40 A amperage rating, making it ideal for handling high currents in industrial environments.
- 4Compact Design: Offers a compact design with dimensions of 68 mm H x 70 mm W x 68 mm D, allowing for easier installation in smaller enclosures.
- 5Compliant with Industry Standards: Meets UL508, CSA C22.2 No. 14, and IEC 60947-3 standards for enhanced safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 70 mm 2.76 in | Product Net Height | 68 mm 2.68 in |
Product Net Depth / Length | 68 mm 2.68 in | Product Net Weight | 0.25 kg 0.55 lb |
Cable Cross-Section | 0.75 ... 10 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 40 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 40 A | Degree of Protection | Front IP20 |
Distance Between Phases | Standard | Handle Color | Black |
Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
Number of Poles | 3P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 1.6 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 750 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A (500 V) 23 A (690 V) 12 A |
Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW (500 V) 11 kW (690 V) 11 kW | Rated Operational Voltage | Main Circuit 750 V |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kiloampere rms | Standards | UL 98 / IEC60947-3 |
Switches Operating Mechanism | Mechanism on Top of the Switch | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 0.8 N·m | Transition Type | Open |
Ampere Rating | 40 A | Horsepower Rating UL/CSA | (acc. to UL 200 V) 10 Hp (acc. to UL 208 V) 10 Hp (acc. to UL 240 V) 10 Hp (acc. to UL 480 V) 20 Hp (acc. to UL 600 V) 25 Hp |
Tightening Torque | acc. IEC 60947-1 0.8 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3601440 | E-Number (Norway) | 4363552 |
E-Number (Sweden) | 3171262 | Manufacturer ID | 1SCA104913R1001 |
