Product Model

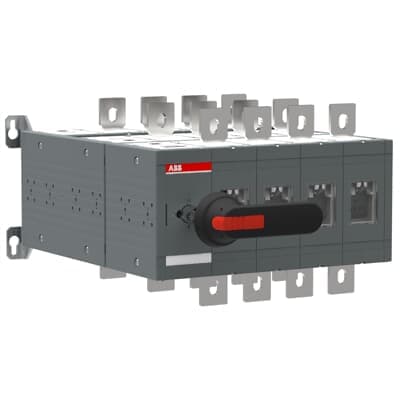

OT630E04YP
Selling Points
- 1Constructed with high-quality materials for long-lasting performance.
- 2Handles up to 630 A in various voltage configurations (380-415 V, 500 V, 690 V).
- 3Includes mechanical interlock and padlockable handle for secure operation.
- 4Equipped with a black plastic IP65 I-0-II pistol type handle and handle extension for smooth manual operation.
- 5Meets EU Directive 2011/65/EU and Amendment 2015/863, ensuring RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP20 | Pollution Degree | 3 |
Product Net Width | 315 mm 12.4 in | Product Net Height | 250 mm 9.84 in |
Product Net Depth / Length | 488 mm 19.21 in | Product Net Weight | 33.56 kg 73.99 lb |
Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A | Conventional Thermal Current (Ithe) | Fully Enclosed 630 A |
Degree of Protection | Front IP20 | Distance Between Phases | Standard |
Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
Handle Color | Black | Handle Type | Handle and shaft included |
Mounting Type | Base mounting | Number of Poles | 4P |
Operating Mode | Front operated | Pollution Degree | 3 |
Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 25 W |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) | Terminal Type | Screw Terminals |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SCA123592R1001 |
Specifications may be subject to change without notice
