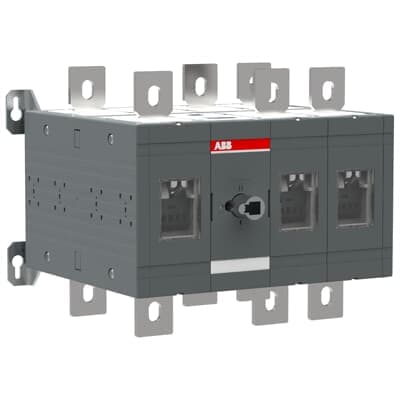

ABB OT630E12C

Selling Points

  • 1High current rating of 630A for demanding applications.
  • 23-pole design with robust insulation voltage of 1000V.
  • 3Mechanism between poles ensures reliable switching operation.
  • 4Compact dimensions: 311x250x280 mm for space-efficient installations.
  • 5Compliant with EU Directive 2011/65/EU and Amendment 2015/863 for environmental safety.
Product Details
OT630E12C
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Product Net Width
311 mm 12.24 in
Product Net Height
250 mm 9.84 in
Product Net Depth / Length
280 mm 11.02 in
Product Net Weight
15 kg 33.07 lb
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 630 A
Conventional Thermal Current (Ithe)
Fully Enclosed 630 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 25 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 630 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 630 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 20 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
40 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
630 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
1SCA022785R8510
