Product Model

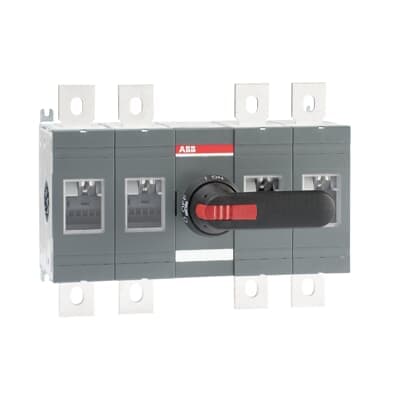

OT630E22P
Selling Points
- 1IP65 Protected Handle and Shaft: Ensures durability and reliability in harsh environments.
- 2Front Operated Mechanism: Convenient and easy to use, even in emergency situations.
- 3Robust Mechanical Durability: Designed to withstand 20,000 operation cycles, ensuring long-lasting performance.
- 4Comprehensive Safety Features: Equipped with inbuilt safety features for enhanced safety and security.
- 5Wide Operational Current Range: Supports up to 630 A at various voltage levels (380-415 V, 500 V, 690 V).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
Pollution Degree | 3 | Product Net Width | 331 mm |
Product Net Height | 250 mm | Product Net Depth / Length | 140 mm |
Product Net Weight | 8 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP00 |
Distance Between Phases | Standard | Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
Handle Type | Handle and shaft included | Lock Type | Yes |
Mechanical Durability | 10000 | Mounting Type | Base mounting |
Number of Poles | 4P | Operating Mode | Front operated |
Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Conditional Short-Circuit Current (Inc) | (800 A fuse, 500 V) 100 kA (800 A fuse, 690 V) 80 kA |
Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW (400 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW |
Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Special Functions | No |
Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 22 (Between the Poles) |
Terminal Type | Lug terminals | Terminal Width | 39 mm |
Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3660779 |
E-Number (Sweden) | 3171223 | Manufacturer ID | 1SCA022753R4870 |
Specifications may be subject to change without notice
